| MOQ: | 1 ยูนิต |
| ราคา: | Negotation |
| บรรจุภัณฑ์มาตรฐาน: | บรรจุด้วยกล่องไม้ |
| วิธีการชำระเงิน: | ที/ที, เวสเทิร์นยูเนี่ยน |
| กำลังการผลิต: | 1,000 หน่วยต่อเดือน |
Solar glass coating ultrasonic atomization aggregation coating is an emerging technology primarily used to enhance the performance of glass surfaces. This coating maintains high transparency without affecting the visual effect of the glass, effectively prevents water droplets and oil stains from adhering, facilitates easy cleaning, improves scratch resistance, and extends service life.
| Parameter | Specification |
|---|---|

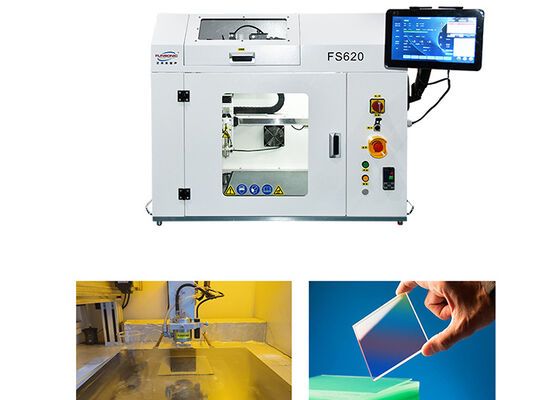

| Product Type | Intelligent Ultrasonic Precision Coating Machine Desktop Type FS620 |
| Spray Nozzle Operating Frequency | 20-200KHz (Normally use 60/100/110/120K) |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.01-50ml/min |
| Effective Spraying Width | 2-100mm |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤30cps |
| Temperature Range | 1-60℃ |
| Atomized Particles (Median Value) | 10-45μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.15MPA |
| Input Voltage | 220V±10%/50-60Hz |
| Exercise Mode | XYZ three-axis, independently programmable |
| Control Mode | FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen |
| Control Content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems |
| Liquid Supply Method | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 20ml or 50ml, 40K, biological grade sampler |
| Rated Power of Ultrasonic Dispersion System | 100W |
